Are you struggling to find strong steel pipes that can handle heavy pressure without breaking? Wrong pipe choices cause major project delays, cost leaks, and huge safety risks for your team.

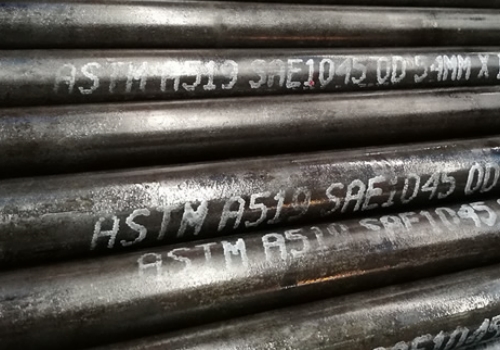

ASTM A519 seamless mechanical steel pipes are carbon and alloy steel pipes used for structural, mechanical, and pressure applications. They offer high precision, excellent strength, and uniform walls because they are hot-finished or cold-finished without any welded seams.
I know how hard it is to source the perfect pipeline parts. You have to deal with many suppliers, check quality standards, and stay on budget. Let me share my real experience to help you make the best choice today.
Many buyers choose the wrong steel grade because the technical data sheets look too confusing. This mistake leads to weak structures, wasted money, and failed inspections during your project build.
The main grades of astm a519 seamless mechanical steel pipes include carbon steel types like 1020, 1025, and 1026, and alloy steel types like 4130 and 4140. They cover outer diameters from 10mm to 324mm and wall thicknesses from 1mm to 30mm.
I always tell my clients to look closely at the chemical breakdown before they buy. Last year, a client from a major oil project in Africa needed pipes that could handle high stress. We supplied our top-grade 1020 and 4140 pipes to their site. The carbon and manganese levels must match the standard exactly. If the mix is wrong, the pipes will crack under pressure.

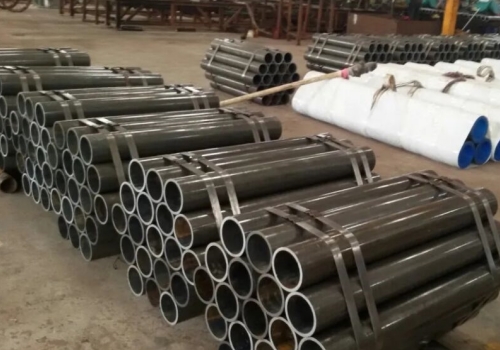

We deliver these pipes with special surface finishes. You can choose bare pipes, black lacquer coating, or light oil layer. We also add plastic caps to protect the pipe ends during long shipping trips.
| Steel Grade | Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) | Silicon (Si) | Chromium (Cr) | Molybdenum (Mo) |
|---|---|---|---|---|---|---|---|
| 1020 | 0.18-0.23% | 0.30-0.60% | ≤0.04% | ≤0.05% | - | - | - |
| 1025 | 0.22-0.28% | 0.30-0.60% | ≤0.04% | ≤0.05% | - | - | - |
| 1026 | 0.22-0.28% | 0.60-0.90% | ≤0.04% | ≤0.05% | - | - | - |
| 4130 | 0.28-0.33% | 0.40-0.60% | ≤0.04% | ≤0.05% | 0.15-0.35% | 0.80-1.10% | 0.15-0.25% |
| 4140 | 0.38-0.43% | 0.75-1.00% | ≤0.04% | ≤0.05% | 0.15-0.35% | 0.80-1.10% | 0.15-0.25% |
Using pipes with weak mechanical traits will cause your engineering system to burst or bend. This mistake ruins your reputation, hurts your budget, and creates unsafe working conditions for everyone.
The mechanical traits of astm a519 seamless mechanical steel pipes depend on their supply condition, such as cold-worked, stress-relieved, annealed, or normalized. These treatments change the tensile strength and yield point values.
I remember working with a procurement team on a massive urban gas network. They were worried about wall thickness changes. I showed them how our cold-drawn tolerances stay within strict limits. For outside diameters under 48.3mm, our tolerance limit is just plus or minus 0.40mm. This precision keeps the whole pipeline safe and stable.
Different conditions change how much the steel can stretch. Annealed pipes stretch more but have lower yield strength. Cold-worked pipes are very hard but stretch less. We test every single batch to ensure absolute safety.
| Grade and Condition | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation Rate | OD Tolerance |
|---|---|---|---|---|
| 1020 Cold Worked (CW) | ≥483 | ≥414 | ≥5% | ±0.40mm (for ≤48.3mm) |
| 1020 Annealed (A) | ≥331 | ≥193 | ≥30% | ±0.40mm (for ≤48.3mm) |
| 4140 Stress Relieved (SR) | ≥855 | ≥689 | ≥10% | ±1% (for ≥60.3mm) |
| 4140 Annealed (A) | ≥552 | ≥414 | ≥25% | ±1% (for ≥60.3mm) |
Managing multiple suppliers for pipes, valves, and fittings creates huge communication gaps. You waste time checking quality across different factories, which delays your final project delivery.
Centerway Steel is your reliable one-stop supplier of pipeline products, offering full production, large inventory, and global sales. We handle everything from high-precision steel pipes to heavy fittings and industrial valves.
I am very proud of our work with top oil, gas, and construction companies across 100 countries. We have deep experience in the African market. We recently completed a major oil exploration pipeline contract there. Our team supplied large-diameter, heavy-thickness pipes that passed strict tests by SGS and BV.
We hold ISO 9001, CE, and GOST certificates. We always focus on your needs. We want to be your long-term global partner for engineering pipeline systems.
| Brand Name | Slogan | Core Certifications | Top Inspection Partners |
|---|---|---|---|
| Centerway Steel | Professional Steel Pipe Integration Supporting Supplier Since 1996 | ISO 9001, CE, GOST, AAA Credit | SGS, BV, TUV, DNV |
This guide shows how astm a519 seamless mechanical steel pipes offer the strength and precision your project needs. Choose the right grade today to ensure perfect project safety.
